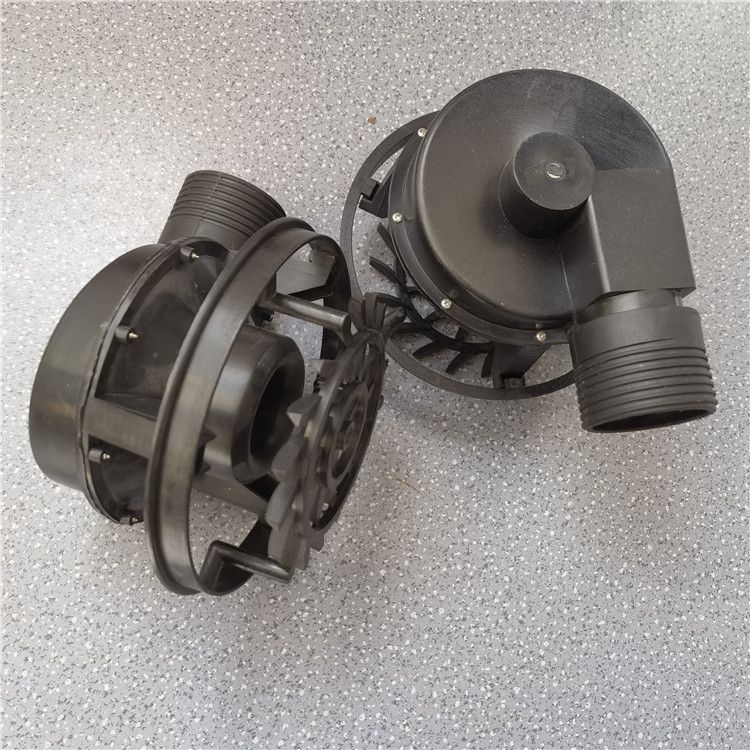

Cooling tower three-disc nozzle with filter NS-o nozzle factory

Features:
1. Energy saving. No motor, double leverage. The nozzle rotates while spraying, thanks to the reaction force of the spray. Water spray uniform, good fog-making effect; second, with the help of water pressure, converted into turbine rotation, driving fan rotation. Compared with the traditional water spraying method of cooling tower, the cooling tower after transformation of this device has more energy saving effect under the same cooling tower, same water temperature and water quality conditions. 5. No stuffing. The heat transfer area caused by fog droplets is very large, the air volume brought by fan rotation is large, and the air-water ratio is large. Therefore, the heat transfer and mass transfer effect between air and water is good. Fouling is serious in cooling towers with packing, aging problems are common, and packing fragments often clog cooling exchangers.
6. It reduces the stress of work. It improves the rotating speed and air volume, reduces the floating water and noise, broadens the application range (can work in the environment with explosion-proof requirements), improves the cooling effect, and the comprehensive energy-saving benefit reaches above. Anti-blocking cooling tower three-disc nozzle with filter NS-o nozzle factory
7. Simple transformation. Ordinary fan packing cooling tower, do not need to replace the shell, according to the unit type (each group of cooling water volume 100m3/h) combination matching replacement into double force energy-saving spray cooler, installation is very convenient. Anti-blocking cooling tower three-disc nozzle with filter NS-o nozzle factory
8. For example. Take the medium temperature type 1000m3/h cooling tower as an example. Cooling tower inlet water pressure 0.1MPa (1.0kg/cm2), fan motor power 45kw, annual electricity cost: 45 24(hours) 30 (days) 11 (months) 0.6 (yuan/degree)= 213,800 yuan. 10 sets were installed at the cost of RMB 200,000 Yuan. Return on investment cycle 0.94 years. According to the comprehensive cost calculation, plus the cost of the wind turbine itself, the investment can be recovered in eight months. If the motor reducer maintenance, filler replacement. Aging packing clogs condenser. The benefits are more obvious
9: Inner diameter of air duct 1800mm, outer diameter of fan blade C176mm, connecting flange Attached Figure 1
